Main Page | Data Structures | Directories | File List | Data Fields | Globals
hostap

hostap_pci.c File Reference

#include <linux/config.h>
#include <linux/version.h>
#include <linux/module.h>
#include <linux/init.h>
#include <linux/if.h>
#include <linux/skbuff.h>
#include <linux/netdevice.h>
#include <linux/workqueue.h>
#include "hostap_wext.h"
#include <linux/ioport.h>
#include <linux/pci.h>
#include "hostap_wlan.h"
#include "hostap_hw.c"

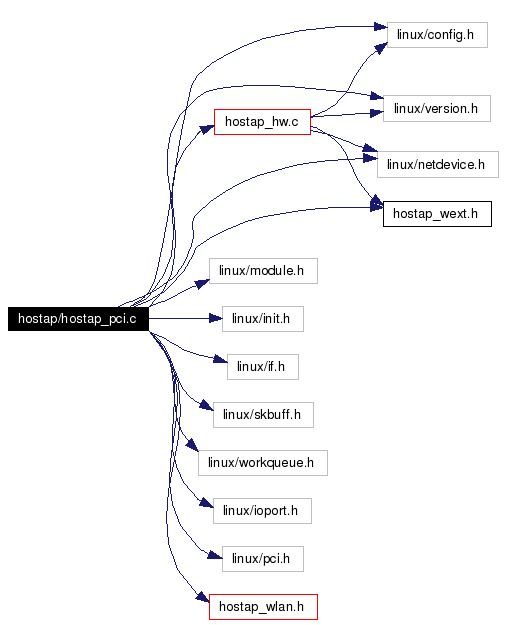

Include dependency graph for hostap_pci.c:

Go to the source code of this file.

Defines

#define PRISM2_PCI
#define HFA384X_OUTB(v, a)   writeb((v), dev->mem_start + (a))
#define HFA384X_INB(a)   (u8) readb(dev->mem_start + (a))
#define HFA384X_OUTW(v, a)   writew((v), dev->mem_start + (a))
#define HFA384X_INW(a)   (u16) readw(dev->mem_start + (a))
#define HFA384X_OUTW_DATA(v, a)   writew(cpu_to_le16(v), dev->mem_start + (a))
#define HFA384X_INW_DATA(a)   (u16) le16_to_cpu(readw(dev->mem_start + (a)))

Functions

 MODULE_AUTHOR ("SSH Communications Security Corp, Jouni Malinen")
 MODULE_DESCRIPTION ("Support for Intersil Prism2.5-based 802.11 wireless LAN ""PCI cards.")
 MODULE_SUPPORTED_DEVICE ("Intersil Prism2.5-based WLAN PCI cards")
 MODULE_LICENSE ("GPL")
static int hfa384x_from_bap (struct net_device *dev, u16 bap, void *buf, int len)
static int hfa384x_to_bap (struct net_device *dev, u16 bap, void *buf, int len)
static void prism2_pci_cor_sreset (local_info_t *local)
static void prism2_pci_genesis_reset (local_info_t *local, int hcr)
static int prism2_pci_probe (struct pci_dev *pdev, const struct pci_device_id *id)
static void prism2_pci_remove (struct pci_dev *pdev)
 MODULE_DEVICE_TABLE (pci, prism2_pci_id_table)
static int __init init_prism2_pci (void)
static void __exit exit_prism2_pci (void)
 module_init (init_prism2_pci)
 module_exit (exit_prism2_pci)

Variables

static char * version = PRISM2_VERSION " (Jouni Malinen <jkmaline@cc.hut.fi>)"
static char * dev_info = "hostap_pci"
static struct pci_device_id
prism2_pci_id_table[] 		__devinitdata
static struct prism2_helper_functions prism2_pci_funcs
static struct pci_driver prism2_pci_drv_id

Define Documentation

#define HFA384X_INB ( a  )    (u8) readb(dev->mem_start + (a))


Definition at line 123 of file hostap_pci.c.

#define HFA384X_INW ( a  )    (u16) readw(dev->mem_start + (a))


Definition at line 125 of file hostap_pci.c.

#define HFA384X_INW_DATA ( a  )    (u16) le16_to_cpu(readw(dev->mem_start + (a)))


Definition at line 127 of file hostap_pci.c.

Referenced by hfa384x_from_aux(), and hfa384x_from_bap().

#define HFA384X_OUTB ( v,
a  )    writeb((v), dev->mem_start + (a))


Definition at line 122 of file hostap_pci.c.

#define HFA384X_OUTW ( v,
a  )    writew((v), dev->mem_start + (a))


Definition at line 124 of file hostap_pci.c.

#define HFA384X_OUTW_DATA ( v,
a  )    writew(cpu_to_le16(v), dev->mem_start + (a))


Definition at line 126 of file hostap_pci.c.

Referenced by hfa384x_to_aux(), and hfa384x_to_bap().

#define PRISM2_PCI


Definition at line 1 of file hostap_pci.c.

Function Documentation

static void __exit exit_prism2_pci ( void  ) [static]


Definition at line 425 of file hostap_pci.c.

References dev_info, and prism2_pci_drv_id.

static int hfa384x_from_bap ( struct net_device * dev,
u16 bap,
void * buf,
int len
) [static]


Definition at line 132 of file hostap_pci.c.

References HFA384X_INB, and HFA384X_INW_DATA.

static int hfa384x_to_bap ( struct net_device * dev,
u16 bap,
void * buf,
int len
) [static]


Definition at line 151 of file hostap_pci.c.

References HFA384X_OUTB, and HFA384X_OUTW_DATA.

static int __init init_prism2_pci ( void  ) [static]


Definition at line 410 of file hostap_pci.c.

References dev_info, prism2_pci_drv_id, and version.

MODULE_AUTHOR ( "SSH Communications Security  Corp,
Jouni Malinen"
)


MODULE_DESCRIPTION ( "Support for Intersil Prism2.5-based 802.11 wireless LAN ""PCI cards."  )


MODULE_DEVICE_TABLE ( pci ,
prism2_pci_id_table
)


module_exit ( exit_prism2_pci  )


module_init ( init_prism2_pci  )


MODULE_LICENSE ( "GPL"  )


MODULE_SUPPORTED_DEVICE ( "Intersil Prism2.5-based WLAN PCI cards"  )


static void prism2_pci_cor_sreset ( local_info_t * local  ) [static]


Definition at line 172 of file hostap_pci.c.

References HFA384X_CMD_BUSY, HFA384X_INW, and HFA384X_OUTW.

Referenced by prism2_pci_probe(), and prism2_pci_remove().

static void prism2_pci_genesis_reset ( local_info_t * local,
int hcr
) [static]


Definition at line 213 of file hostap_pci.c.

References HFA384X_OUTW.

static int prism2_pci_probe ( struct pci_dev * pdev,
const struct pci_device_id * id
) [static]


Definition at line 236 of file hostap_pci.c.

References dev_info, prism2_free_local_data(), prism2_init_dev(), prism2_init_local_data(), prism2_pci_cor_sreset(), and prism2_pci_funcs.

Here is the call graph for this function:

static void prism2_pci_remove ( struct pci_dev * pdev  ) [static]


Definition at line 323 of file hostap_pci.c.

References hfa384x_disable_interrupts(), prism2_free_local_data(), and prism2_pci_cor_sreset().

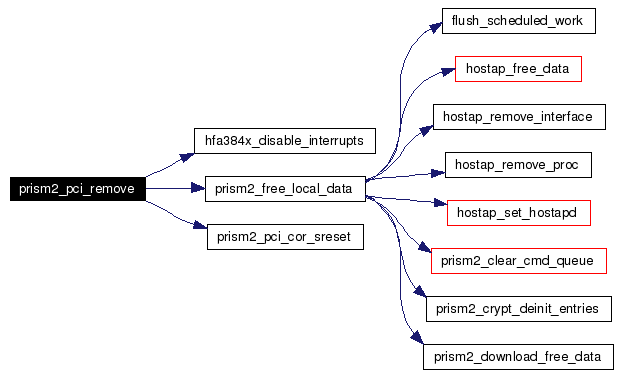

Here is the call graph for this function:

Variable Documentation

struct pci_device_id prism2_pci_id_table [] __devinitdata [static]


Initial value:

 {

        { 0x1260, 0x3872, PCI_ANY_ID, PCI_ANY_ID },

        { 0x1260, 0x3873, PCI_ANY_ID, PCI_ANY_ID },

        { 0x167d, 0xa000, PCI_ANY_ID, PCI_ANY_ID },
        { 0 }
}

Definition at line 48 of file hostap_pci.c.

char* dev_info = "hostap_pci" [static]


Definition at line 28 of file hostap_pci.c.

Referenced by exit_prism2_pci(), init_prism2_pci(), and prism2_pci_probe().

struct pci_driver prism2_pci_drv_id [static]


Initial value:

 {
        .name           = "prism2_pci",
        .id_table       = prism2_pci_id_table,
        .probe          = prism2_pci_probe,
        .remove         = prism2_pci_remove,





}

Definition at line 396 of file hostap_pci.c.

Referenced by exit_prism2_pci(), and init_prism2_pci().

struct prism2_helper_functions prism2_pci_funcs [static]


Initial value:

{
        .card_present   = NULL,
        .cor_sreset     = prism2_pci_cor_sreset,
        .dev_open       = NULL,
        .dev_close      = NULL,
        .genesis_reset  = prism2_pci_genesis_reset,
}

Definition at line 226 of file hostap_pci.c.

Referenced by prism2_pci_probe().

char* version = PRISM2_VERSION " (Jouni Malinen <jkmaline@cc.hut.fi>)" [static]


Definition at line 27 of file hostap_pci.c.

Referenced by init_prism2_pci().

Generated on Mon Nov 21 16:01:27 2005 for openwifi by  doxygen 1.4.1
